THERMAL ASSEMBLY CLIP

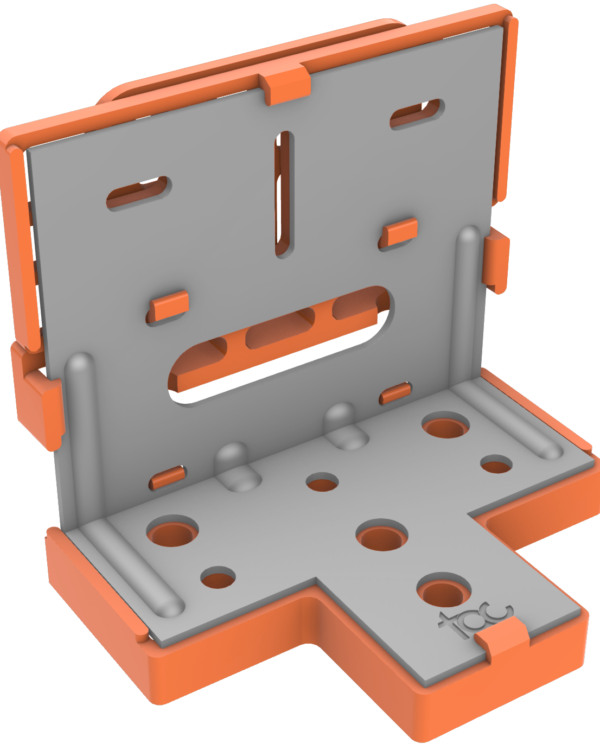

TAC 2.1 Thermal Assembly Clip consists of a cold-formed A653 CS Type-B G90, 14GA galvanized steel clip with slotted HDPE thermal pads.
- Adaptable Orientation
- Versatile Insulation Compatibility
- Non-Combustible Design

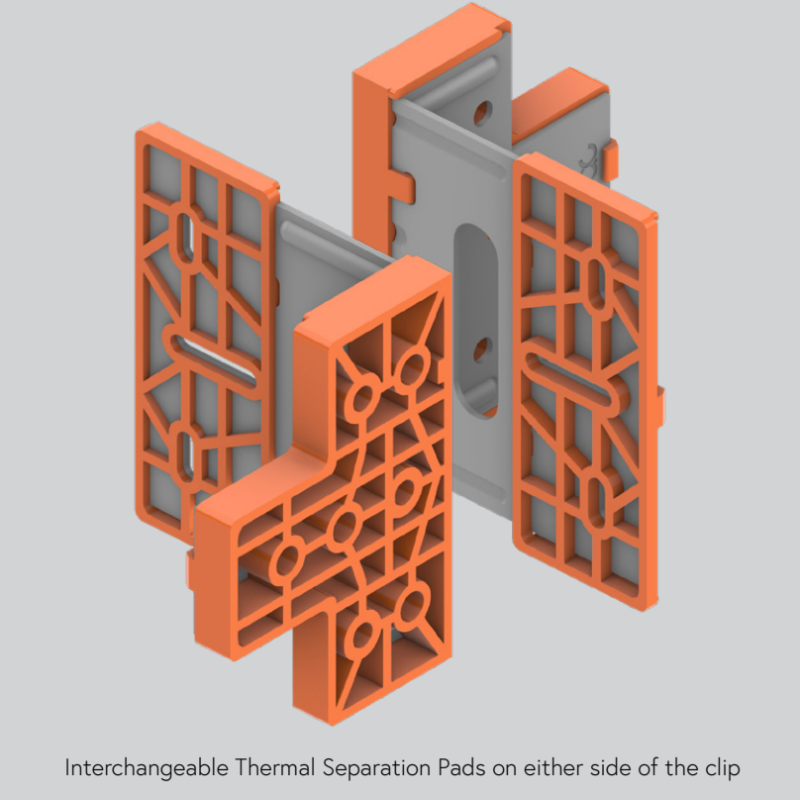

- Dual-Sided Thermal Pad Attachment
Please contact us for 3D files or Revit Family files.
PERFORMANCE CRITERIA
- Supports insulation thickness of 4” to 6”
- Compatible with both vertical and horizontal installations
- Adjustable thermal pad for flexible positioning
- Stiffening rib reinforcements for high-wind loads and heavy dead-loads
- Non-combustible and CAN/ULC S-134 fire-tested
- Meets industry standards and certifications
MEETING ARCHITECTURAL NEEDS

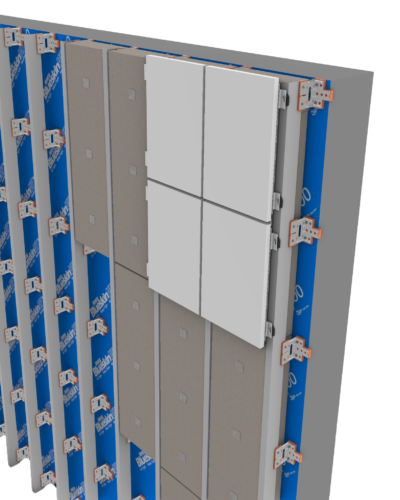

- Technical support, standard design details, CSC specifications, and component drawings are available upon request. The system has been verified for thermal assembly analysis and structural testing. It is compatible with various substrates, including steel studs, cast-in concrete, and CMU.
Lightweight and easy to handle, the system offers up to 1/2” built-in adjustability without third-party shims.
Installation guidelines, training, and project-specific spacing recommendations are available upon request.
